Nelson Point

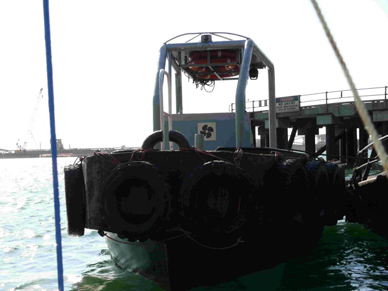

MV-Nelson-Point_resized

Send an enquiry

  • Card numberPin
    Add a row

IDENTIFICATION

MAIN DIMENSIONS
Name: Nelson Point Length o.a.: 9.2 Metres
Callsign: VNW2679 Length Waterline: 9 Metres
Port Of Registry:  Fremantle Beam (moulded): 3.4 Metres
Flag State: AUS  Depth (moulded): 2.5 Metres
IMO Number: N/A  Draught:  1.6 Metres
MMSI Number  Deadweight:
Owner: Seawest port services Gross Tonnage: 12 Tonnes
Ship Manager: Seawest port services  Nett Tonnage:
Classification Society: WA Dept of Transport Clear Deck Space: 4 Square metres @ tonnes per sq m.
Class Notation: Local
Date Keel Laid: 1995
Date of Delivery: 1996
Shipyard: Portside Marine

PERFORMANCE

CAPACITIES
Maximum speed: 8 knots Accommodation: 0 berths, 0 cabins
Bollard pull ahead: 1.5 metric tonnes Freshwater: nil tonnes
Bollard pull astern: N/A Fuel: 1.1 tonnes
Ballast water: nil tonnes
Foam:  N/A
Dispersant: N/A

PROPULSION

 GENERATORS
Main Engines:

  • Number:1
  • Manufacturer: Cummins
  • Model number: 6B/BT 5.9-M
  • Continuous rating: 164 KW
  • Speed: 2300 RPM
  Auxiliary engines

  • Number: N/A
  • Manufacturer: N/A
  • Model number: N/A
  • Continuous Rating: N/A
  • Speed: N/A
Propulsion:

  • Number: 1
  • Type: Single screw with rudder
  • Manufacturer: Twin disc gear box
  • Model number: MG506
  • Propeller diameter: 575 Millimetres
  • Propeller Speed: 3:1 RPM
  Harbour Engines:

  • Number: N/A
  • Manufacturer: N/A
  • Model number: N/A
  • Continuous Rating: N/A
  • Speed: N/A
Bow Thruster:

  • Number: N/A
  • Manufacturer: N/A
  • Model Number: N/A
  • Propellor: N/A
  • Drive: N/A
  • Thrust: N/A

Equipment:
Towing:

  • Winch Fwd: N/A
  • Winch Aft: N/A
  • Tugger winch: N/A
  • Bridle winch: N/A
  • Towing hook: N/A
  • Deck equipment: N/A
 Navigation:

  • Magnetic compass: Yes
  • Gyro Compass: N/A
  • Satellite Communication: N/A
  • GPS: N/A
  • Radar: N/A
  • Echo Sounder: Yes
  • Auto pilot: N/A
Communication:

  • GMDSS area: N/A
  • VHF: GME



 Other:

  • Fire Fighting equipment: N/A
  • Deck crane: N/A
  • MOB boat: N/A
  • Salvage equipment: N/A
  • Oil Dispersal: N/A
  • Search lights: N/A
  • When open for Sale: N/A
Download Specs
